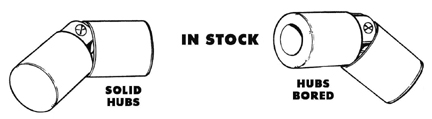

UNIVERSAL STEEL AND BRONZE UNIVERSAL JOINTS
       J • O • I • N • T • S                WITH SOLID AND BORED HUBS

BRONZE, MONEL, AND
STAINLESS UNIVERSAL JOINTS ARE
AVAILABLE.
Prices furnished upon request.

EXTRA LONG UNIVERSAL JOINTS UP TO
TWICE STANDARD LENGTH ARE AVAILABLE.
FACTORY ALTERATION CHARGES
PRICED ON APPLICATION.

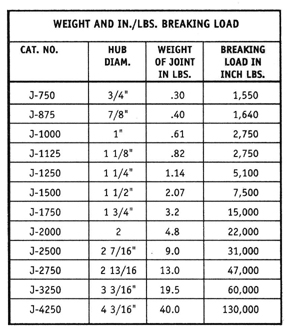

STRENGTH OF STEEL JOINTS

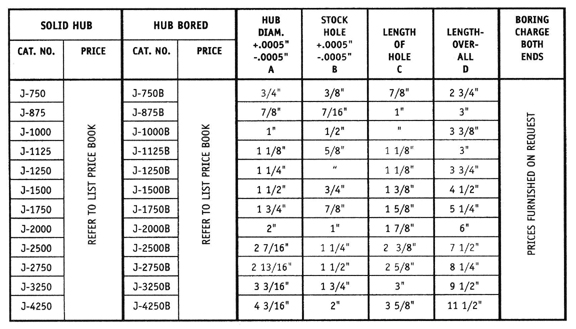

• Diameter of bore should not exceed 60% of hub diameter “A”.
• Steel Universal Joints will transmit power equal to that of standard steel shafting of diameters up to 60% of the joint hub diameter, with joint operating at an angle of 25 degrees or less from a straight line.
• For selection of joints to operate at very high speed or at angles over 25̊, we recommended that you refer such cases to us for our recommendation.

LUBRICATION
• Universal Joints, size 1-1/2" hub diameter and larger, have a large grease reservoir in the center block
which permits full lubrication at all times. Joints 1-1/4" hub diameter and under are not supplied with oilers.
• All joints are fully lubricated before shipment.
• Disassemble of joints for alteration is not recommended. It is advisable to have the factory supply them to your specifications ready to use.
